HY6 Series Mechanical Conveyor Belt Fastener
The HY6 series is a flexible mechanical belt fastener designed for fabric-core conveyor belts running on small-diameter pulleys. Suitable for EP and NN belts, it allows rapid mechanical splicing without vulcanizing equipment — minimizing downtime on maintenance-intensive operations.
- Flexible Design — Compatible with Small-Diameter Pulleys
- Suitable for EP & NN Fabric-Core Belts
- Rapid Mechanical Splicing — No Vulcanizing Required
- Available in HY6Q, HY6S & HY6W Variants
HY6 Series — Flexible Super Screw Conveyor Belt Splice
A quick-change mechanical belt connector engineered for tight spaces, small pulleys, and fast turnarounds — no vulcanizer, no curing time, no specialist required.
What Is the HY6 Super Screw Belt Splice?
Mechanical splicing, reinvented for everyday maintenance crews

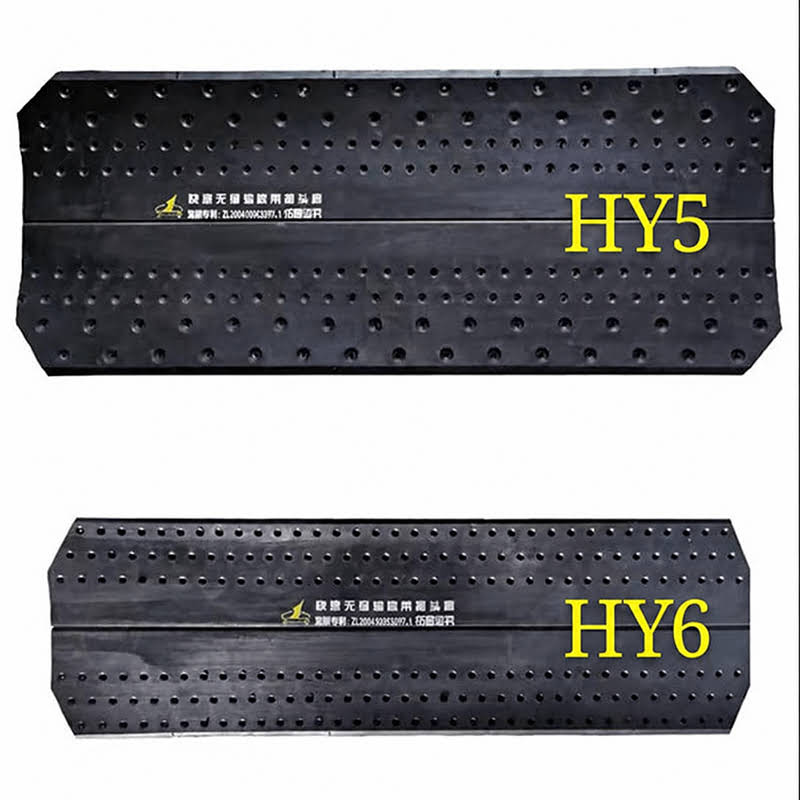

The HY6 Series is a flexible, general-purpose mechanical conveyor belt connector — sometimes referred to in the industry as a “super screw” style splice. Instead of hot vulcanization or adhesive bonding, the HY6 sleeve wraps around the belt ends and is locked in place purely with self-tapping screws driven by a standard power drill.
The upper and lower halves of the HY6 sleeve are joined as a single body, so there’s no need to position parts separately or punch alignment holes before installation. This makes HY6 one of the fastest mechanical splicing systems to install in the field — ideal for plants where downtime is expensive and access to a vulcanizing press is limited or impossible.

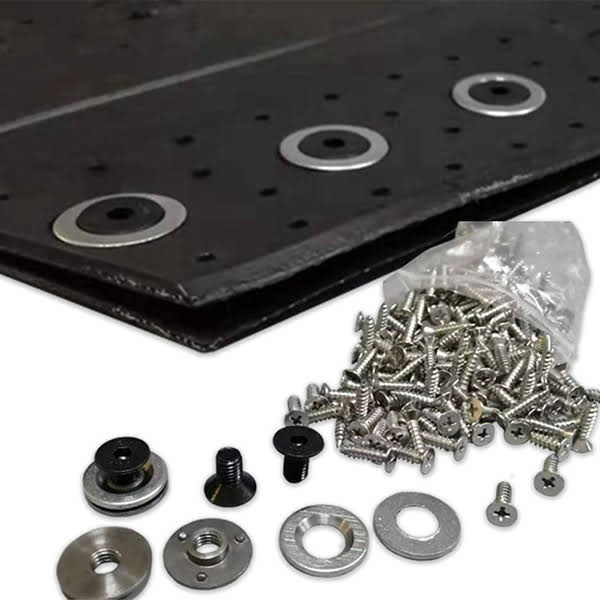

Because HY6 uses embedded nuts and washers rather than through-bolts, it threads into the belt’s fabric reinforcement without cutting the carcass — keeping the belt flexible enough to pass over small-diameter pulleys without cracking or delaminating at the joint.
Why Maintenance Teams Are Switching
Traditional joining methods come with hidden costs
⚠ Traditional Hot Vulcanization
- Requires a vulcanizing press and trained technicians
- 8+ hours of line downtime per splice
- High process complexity and equipment cost
- Difficult to perform in remote or field locations
✓ HY6 Super Screw Mechanical Splice
- Just a power drill — no vulcanizer, no curing
- Installed and running again in under 2 hours
- Any competent mechanic can learn it in one session
- Performs reliably in humid, dusty, or remote field conditions
How HY6 Installation Works
From bare belt ends to running line in under two hours
Confirm orientation
Check the “UP” marking on the sleeve to ensure correct top/bottom orientation before fitting.
Strip the joint area
Strip back the rubber cover layer at both belt ends to expose the carcass for the splice sleeve.
Fit the tenon to the socket
Align the upper and lower sleeve sections so the tenon seats exactly into the socket — this determines splice accuracy.
Apply adhesive (optional)
For added stability in high-tension applications, a thin layer of adhesive can be brushed on before fastening.

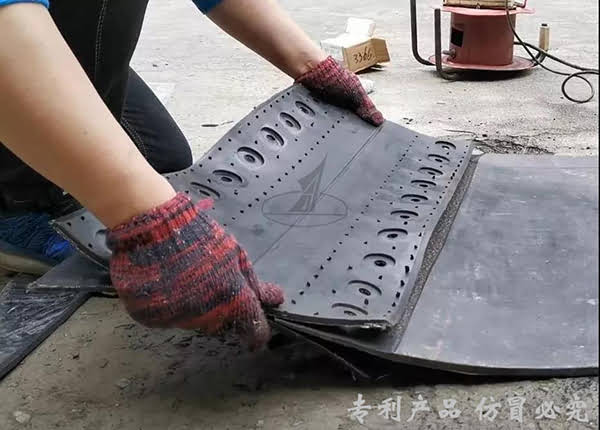

Pre-assemble and form
Press the sleeve into shape around both belt ends before driving any fasteners.

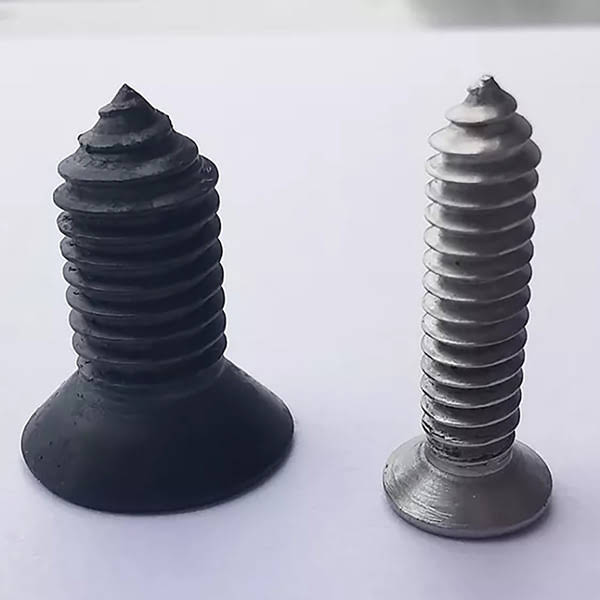

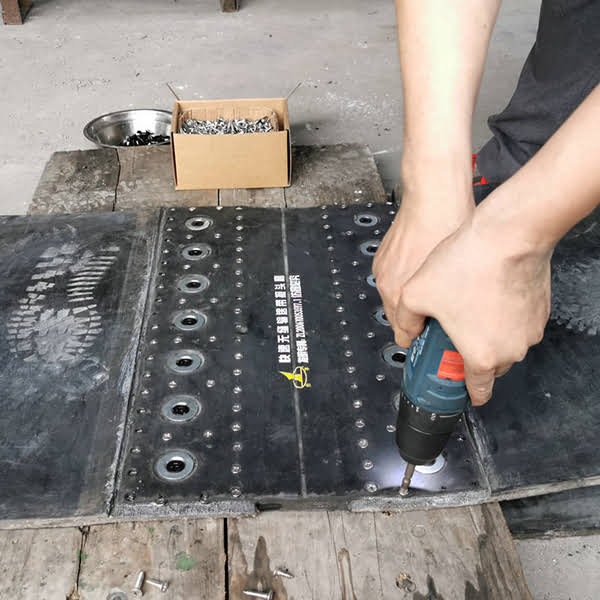

Drive the self-tapping screws
Using a standard power drill, drive the self-tapping screws into the pre-marked points across the sleeve.

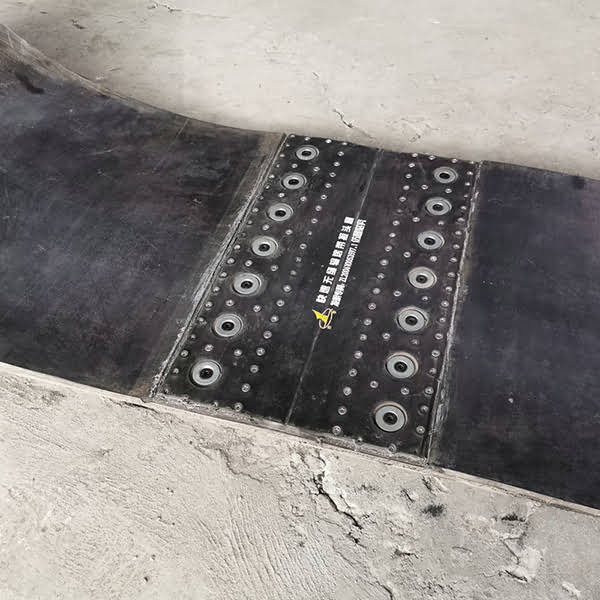

Inspect and restart
Check for a flat, seamless surface profile, then return the belt to service immediately.
HY6Q / HY6S / HY6W — Choose Your Configuration
Three width and tension classes covering most general-purpose conveyor belts
Where HY6 Super Screw Splicing Is Used
Built for general-purpose conveyors where space and turnaround time matter
Compact Lines
Plants with small pulley diameters where heavy splices won’t bend around rollers.
Manufacturing
Packaging and light-industrial lines needing a fast splice without downtime.
Mobile Field
Portable crushers and screens where there’s no access to vulcanizing gear.
Emergency Fix
Sites needing a same-shift fix after a failure, with no time to wait for a crew.

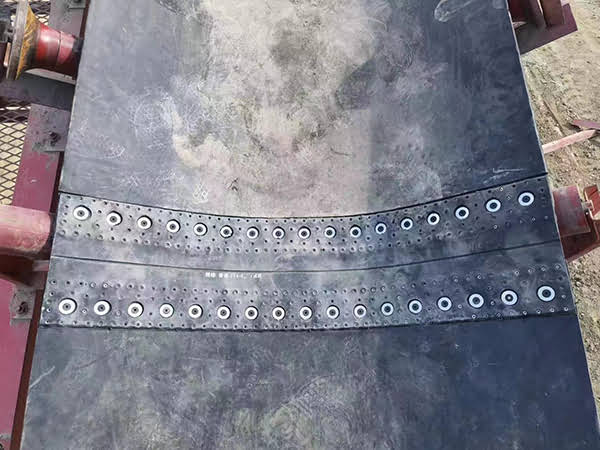

HY6 In the Field
Installation and finished joint photos
Frequently Asked Questions
Common questions from buyers evaluating super screw belt splicing
Need Help Confirming the Right HY6 Model?
Send us your belt thickness, minimum pulley diameter, and working tension — our team will confirm the correct configuration within 24 hours.
