HUAYE-301 High-Strength Conveyor Belt Repair Adhesive
A 3-component cold-bonding rubber repair compound for conveyor belt surface damage. Manual mixing, large-area application — no heating equipment required. Surface cure in 15 minutes, suitable for light load operations in as little as 30 minutes.
- Surface Cure in Just 15 Minutes
- Light Load Operation from 30 Minutes
- 3-Component Cold-Bonding System
- Suitable for Large-Area Belt Surface Repair
Built for Heavy-Duty Belt Surface Repair
When conveyor belt surfaces suffer gouges, cuts, or large-area abrasion from bulk materials — coal, ore, sand, clinker — HUAYE-301 provides a fast, field-applicable cold-bonding solution. Three components work together: a base resin, a curing agent, and a rubber-activating primer, delivering a repaired zone that flexes with the belt and resists re-damage under continuous load.
Surface cure in 15 minutes. Belt returns to light load in 2 hours, full operational load in 4 hours — without removing the belt or sourcing hot vulcanizing equipment.
Where HUAYE-301 Is Used
HUAYE-301 is suited to surface gouge and large-area abrasion repair on EP, steel-cord, and rubber conveyor belts across:
Mining and quarrying operations where impact damage and abrasive bulk materials cause frequent surface wear; port terminals handling coal, ore, and aggregate; and industrial plant conveyors where belt replacement downtime is not an option.
Technical Specifications
| Product Type | 3-component cold-bonding rubber repair adhesive |
|---|---|
| Application | Belt surface gouges, cuts, abrasion — EP, steel-cord, rubber belts |
| Tensile Strength | 30 MPa (requirement ≥25 MPa) |
| Peel Strength | 13 N/mm (requirement ≥10 N/mm) |
| Elongation at Break | 440% (requirement ≥400%) |
| Right-Angle Tear Strength | 75 kN/m (requirement ≥60 kN/m) |
| Hardness | Shore A 76 (requirement 70–80) |
| Pot Life (at 25°C) | 5–8 minutes — apply immediately after mixing |
| Surface Cure | 15 minutes |
| Light Load Operation | 2 hours after application |
| Full Load Operation | 4 hours after application |
| Curing Method | Room temperature, no heating equipment required |
| Shelf Life | 12 months (sealed, cool, dry storage) |

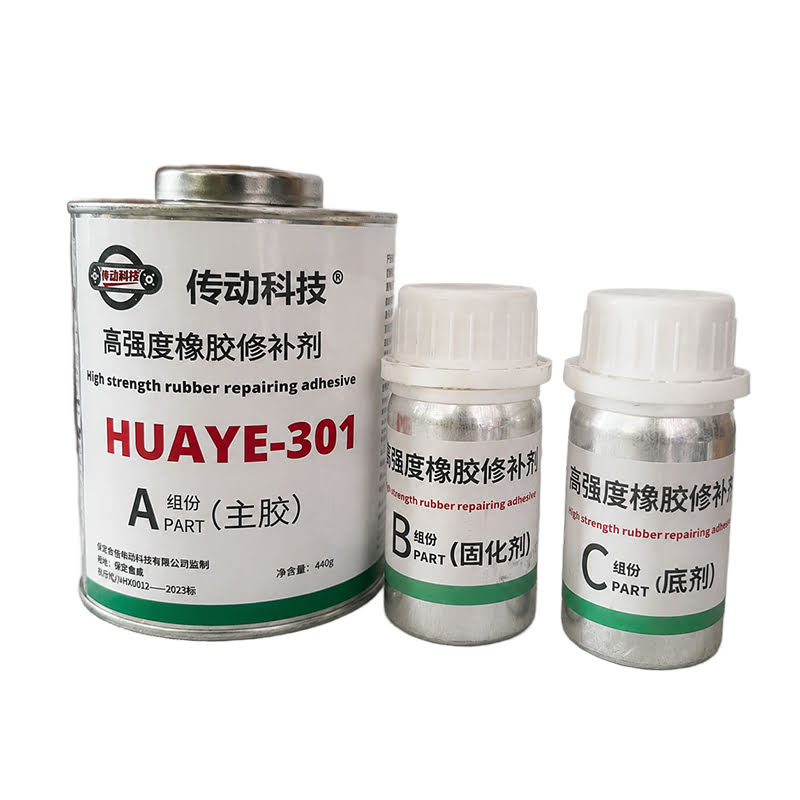

| Packaging | Component A (main adhesive): 440 g/can | Component B (hardener): 22 g/bottle | Component C (primer): bottle + powder |
How to Apply HUAYE-301
- Grinding: Use a tungsten steel grinding disc to thoroughly roughen the damaged belt surface. Avoid discoloration, brightening, or burning the rubber substrate during grinding.
- Surface Treatment: Pour the powder from the Component C primer bottle cap into the liquid bottle and shake until fully dissolved. Apply the mixed primer to the treated surface and allow to dry completely for 15 minutes.

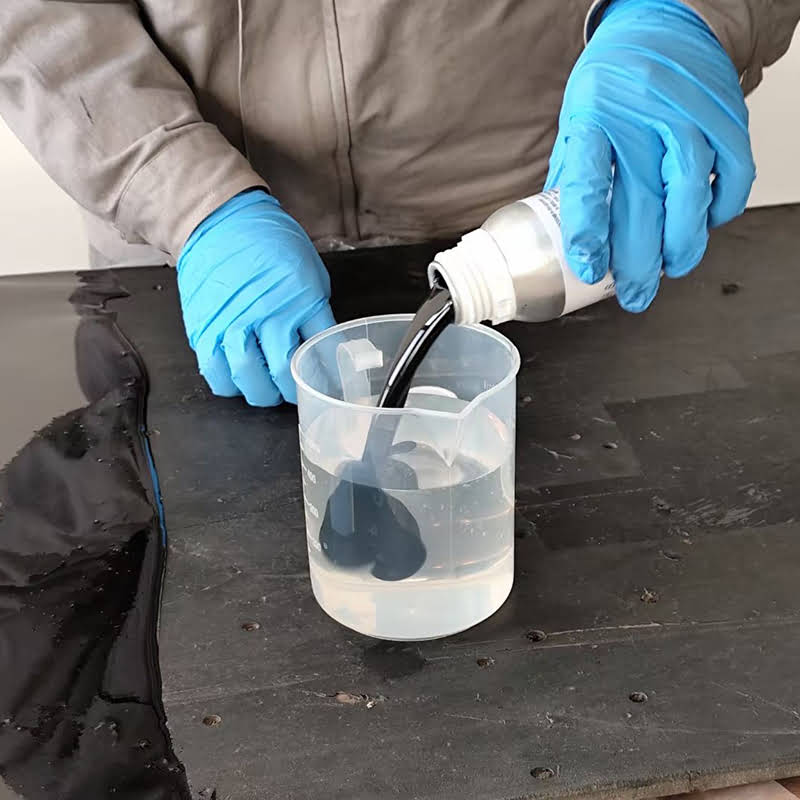

- Mixing: Mix Component A and Component B at a strict 20:1 ratio by weight. Stir thoroughly within 1 minute and apply immediately — pot life is only 5–8 minutes. Prepare only the quantity needed for immediate use.

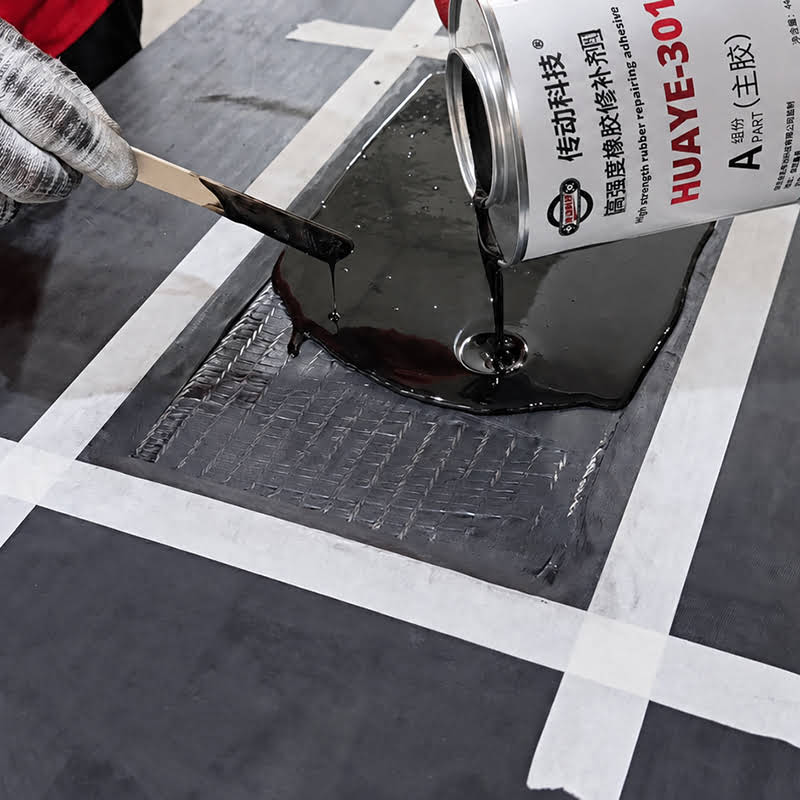

- Application: Spread the mixed adhesive onto the repair zone with a rubber scraper or short-bristle brush. Keep each coat within 2 mm thickness. For deep cuts, apply in multiple sequential layers.
Packaging
Handling Notes
Pot life is only 5–8 minutes after mixing — prepare only the quantity you can apply immediately. Do not mix more than needed.
Low temperature warning: below 15°C, curing decelerates. Apply mild external heating (heat gun or IR lamp) after application if needed — do not exceed 40°C on the repair zone.
Ensure adequate ventilation at the work site during mixing and application.
Store sealed in a cool, dry location away from heat sources and direct sunlight.
Frequently Asked Questions
What types of belts is HUAYE-301 compatible with?
HUAYE-301 is suitable for surface repair on EP (polyester-nylon), steel-cord, and rubber conveyor belts. It is designed for belt surface gouges, cuts, abrasion, and impact damage — not for full joint splicing.
How long does HUAYE-301 take to cure?
Surface cure takes 15 minutes. The belt can return to light load operation after 2 hours and full load operation after 4 hours, at an ambient temperature of 25°C.
What is the pot life after mixing?
Once Component A and Component B are mixed, the pot life is 5–8 minutes. The mixed adhesive must be applied immediately. Prepare only the quantity needed for immediate use to avoid waste.
Can HUAYE-301 be used in cold environments?
Yes, but curing slows below 15°C. To accelerate curing in cold conditions, apply mild external heating using a heat gun or infrared lamp after application — keep the repair zone temperature below 40°C.
What is the mixing ratio for Components A and B?
Component A (main adhesive) and Component B (hardener) must be mixed at a strict 20:1 ratio by weight. Incorrect ratios will affect curing performance and final bond strength.
What is the shelf life of HUAYE-301?
12 months from the date of manufacture when stored in sealed, dry conditions at room temperature, away from direct sunlight and heat sources.
